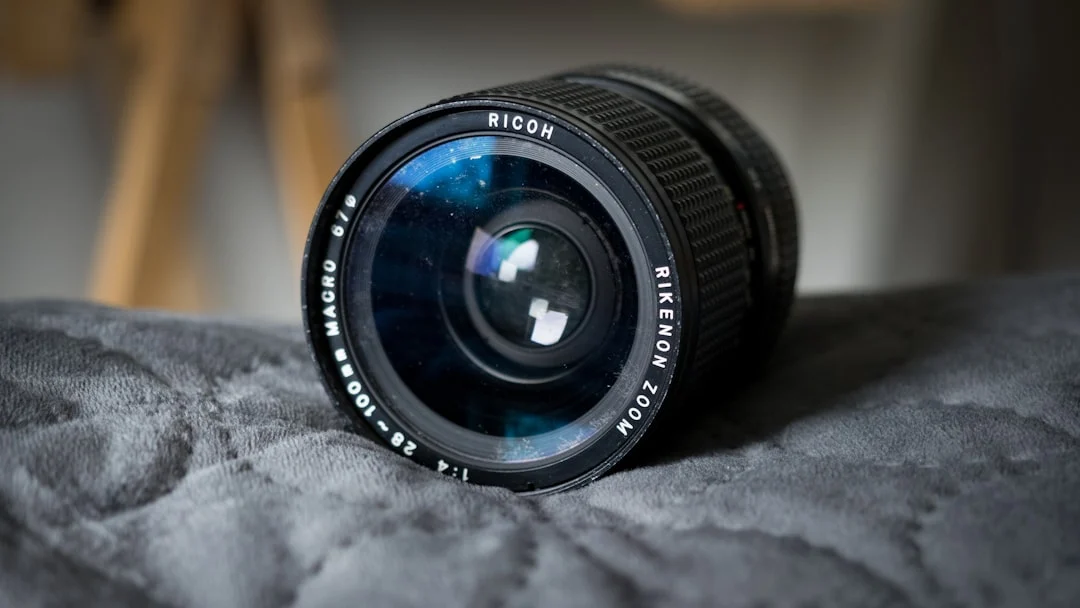

A camera lens is far more than a piece of glass that focuses light. It is a precision optical instrument made up of multiple glass elements arranged in carefully calculated groups, each one shaped and coated to control how light travels from the scene to your sensor. Understanding how lenses work optically gives you a deeper appreciation for why some lenses produce stunningly sharp images while others fall short. It explains the performance differences you see in your own photos and helps you make informed decisions when choosing lenses for your work.
Elements and Groups: How a Lens Is Built
Every camera lens contains multiple individual glass pieces called elements. These elements are arranged in groups. Some groups consist of a single element, while others cement two or more elements together (called cemented groups or doublets and triplets). A typical kit zoom lens might have 12 to 16 elements arranged in 9 to 12 groups. A simple prime lens might use 7 to 10 elements in 5 to 8 groups.
Each element has a specific job. Some converge light (positive or convex elements), some diverge light (negative or concave elements), and others correct specific optical errors. The overall design balances these elements against each other so that the combined system focuses light cleanly and evenly across the entire image area.
More elements do not automatically mean a better lens. Every glass surface introduces a small amount of light loss and potential reflections. The challenge for lens designers is to use enough elements to correct optical errors without introducing so many surfaces that contrast and light transmission suffer. This is where advanced glass types and coatings become essential.
Optical Aberrations: Why Perfect Lenses Do Not Exist
No lens focuses light perfectly. Every real-world lens exhibits optical aberrations, which are deviations from the ideal image. Lens designers spend their careers minimizing these aberrations through element shape, glass choice, and strategic arrangement. Understanding the main types of aberrations helps you recognize their effects in your photographs and choose lenses that control them well.
Chromatic Aberration
Chromatic aberration occurs because glass bends different wavelengths (colors) of light by slightly different amounts. This is the same principle that causes a prism to split white light into a rainbow. In a camera lens, this means red, green, and blue light do not all focus at exactly the same point.
There are two types. Longitudinal (axial) chromatic aberration causes different colors to focus at slightly different distances along the lens axis. You see it as color fringing around out-of-focus highlights, with one color (often magenta or green) appearing in front of the focal plane and the complementary color behind it. It is most visible at wide apertures and diminishes as you stop down.
Lateral (transverse) chromatic aberration causes different colors to focus at slightly different positions across the image plane. It appears as colored fringing along high-contrast edges, especially toward the corners of the frame. Unlike longitudinal CA, lateral CA does not improve with smaller apertures, but it can be corrected very effectively in post-processing or through in-camera lens correction profiles.
Spherical Aberration
Spherical aberration happens because a simple spherical lens surface does not focus all light rays to the same point. Light passing through the edges of the lens converges at a different distance than light passing through the center. This creates a soft, slightly hazy look with reduced contrast, especially at wider apertures where more of the lens surface is in use.
Stopping down the aperture reduces spherical aberration by blocking the edge rays and only allowing the well-behaved central portion of the lens to form the image. This is one of the main reasons lenses become sharper when stopped down from their maximum aperture. Many lenses are noticeably soft wide open but dramatically sharper at f/4 or f/5.6 because spherical aberration is being controlled by the smaller aperture.
Some portrait lenses are intentionally designed with a controlled amount of spherical aberration at wide apertures to produce a softer, more flattering rendering with smooth bokeh. A few lenses even include an adjustable ring that lets you dial in the amount of spherical aberration to taste.
Coma
Coma (short for comatic aberration) affects off-axis light rays, causing point light sources near the edges and corners of the frame to appear as small comet-shaped or wing-shaped smears rather than crisp points. It is most problematic in astrophotography, where stars in the corners of wide-angle shots are stretched into tiny streaks.
Coma is worst at wide apertures and improves as you stop down. Lenses designed for astrophotography or architectural work are often optimized to minimize coma, producing clean, point-like stars all the way to the corners. When evaluating a lens for night sky photography, coma control is one of the most important performance characteristics to check.
Astigmatism
Astigmatism causes a point of light to be rendered as a short line or ellipse rather than a crisp dot. It typically affects the edges and corners of the image more than the center. You can identify astigmatism by looking at fine detail near the corners: lines oriented in one direction (say, radial lines pointing toward the center) will appear sharp while lines in the perpendicular direction (tangential lines) appear soft, or vice versa.
Like most aberrations, astigmatism improves with smaller apertures. Modern lens designs generally control astigmatism well, but it can be noticeable in older or simpler lens designs, especially at their widest apertures.
Field Curvature
A simple lens focuses light onto a curved surface rather than the perfectly flat plane of a camera sensor. This means that if the center of the image is sharply focused on the sensor, the edges and corners may be focused slightly in front of or behind the sensor plane, causing them to appear soft. This is field curvature.
Lens designers add elements specifically to flatten the field, and most modern lenses do an excellent job of it. However, some lenses (particularly older or simpler designs) exhibit noticeable field curvature. You can test for it by focusing on a flat, textured surface (like a newspaper taped to a wall) and checking whether the edges and corners are equally sharp as the center. If the center is sharp but the edges are soft, and refocusing makes the edges sharp but the center soft, field curvature is likely the cause.
Distortion
Lens distortion causes straight lines to appear curved in the image. Barrel distortion bows straight lines outward (like the sides of a barrel), and is common in wide-angle lenses. Pincushion distortion bows lines inward, and is more common at telephoto focal lengths. Some zoom lenses exhibit barrel distortion at the wide end and pincushion at the tele end.
Distortion is easily corrected in post-processing. Most cameras apply automatic distortion correction for recognized lenses, and editing software like Lightroom includes profiles for thousands of lenses. For this reason, many modern lens designs accept more distortion than older lenses did, knowing it will be corrected digitally, and use the freed-up design complexity to improve sharpness and other characteristics instead.
Special Glass Types
Lens designers use specialized glass materials to combat aberrations more effectively than standard optical glass allows.
ED (Extra-Low Dispersion) Glass
ED glass has an unusually low dispersion characteristic, meaning it bends different wavelengths of light by more similar amounts than standard glass. This directly combats chromatic aberration. An ED element can dramatically reduce color fringing with a single element where standard glass might require multiple elements to achieve the same correction. Most professional-grade telephoto and zoom lenses include one or more ED elements. You will see various manufacturer-specific names for this glass (Super ED, UD, fluorite), but they all serve the same purpose: reducing chromatic aberration.
Aspherical Elements
An aspherical element has a surface that is not a simple sphere. Instead, the curvature changes gradually from the center to the edge of the element. This allows the element to correct spherical aberration and distortion far more effectively than a spherical element of the same size. A single aspherical element can replace two or three conventional elements, allowing the lens to be smaller, lighter, and often sharper.
Aspherical elements are more difficult and expensive to manufacture than spherical ones. They can be ground and polished, precision-molded from glass, or molded from hybrid materials. The manufacturing method affects cost and optical quality. High-end lenses use precision-ground or glass-molded aspherical elements, while consumer lenses may use lower-cost molded aspherical elements that still provide significant optical improvement over all-spherical designs.
Fluorite Elements
Fluorite (calcium fluoride crystal) has exceptional optical properties: extremely low dispersion (even lower than ED glass) and very low refractive index. This makes it highly effective at correcting chromatic aberration, particularly in long telephoto lenses where CA is the dominant image quality challenge. Fluorite elements also transmit more light than glass, slightly improving overall lens brightness.
The trade-off is that fluorite is fragile, expensive, and sensitive to temperature changes. It cannot be used for front or rear elements that might be exposed to impact. You will find fluorite elements in premium telephoto lenses where their optical benefits justify the added cost and handling requirements.
Lens Coatings: Controlling Reflections
Every time light passes from air into glass or from glass back into air, a small percentage (about 4-5%) is reflected rather than transmitted. In a lens with 12 elements and 20 or more air-to-glass surfaces, these reflections add up. Without coatings, a significant amount of light would be lost, and the reflected light bouncing around inside the lens would reduce contrast and cause flare and ghosting.
Lens coatings are microscopically thin layers applied to each glass surface that reduce these reflections. A single-layer coating can reduce reflection at one glass surface from about 4% to about 1.5%. Multi-coating (multiple thin layers tuned to different wavelengths) can reduce reflection to less than 0.2% per surface.
Modern lenses use advanced multi-coating technologies that virtually eliminate internal reflections across the full visible spectrum. Some manufacturers use nano-structure coatings that achieve even lower reflectance than conventional multi-coatings, particularly at extreme angles of incidence. This results in higher contrast, richer colors, and dramatically reduced flare and ghosting when shooting into light sources.
Coating quality is one of the most underappreciated factors in lens performance. Two lenses with identical element counts and glass types can produce dramatically different contrast and flare resistance depending on their coatings. This is part of why premium lenses from established manufacturers often outperform cheaper alternatives in real-world shooting, even when their resolution numbers appear similar on paper.
MTF Charts: Reading Lens Performance Data
Modulation Transfer Function (MTF) charts are the standard way lens manufacturers communicate optical performance. They look intimidating at first glance, but they are straightforward once you understand what they show.
An MTF chart plots how well a lens reproduces contrast from the center of the image to the edges. The horizontal axis represents the distance from the center of the image (center on the left, corner on the right). The vertical axis represents contrast reproduction, from 0% (no contrast) at the bottom to 100% (perfect contrast) at the top.
Two sets of line pairs are typically shown: a coarse pattern (10 lines per millimeter or 10 lp/mm) and a fine pattern (30 lp/mm or sometimes 40 lp/mm). The coarse pattern represents overall contrast, while the fine pattern represents resolving power (ability to render fine detail).
For each pattern, two curves are plotted: one for radial (sagittal) lines and one for tangential (meridional) lines. If these two curves are close together, the lens renders detail uniformly in all orientations, which produces smooth, even-looking bokeh and natural-looking detail. If the curves diverge significantly, the lens has astigmatism, and detail quality varies depending on its orientation in the frame.
In practical terms: higher curves mean better performance. Curves that stay high and flat from center to edge indicate uniform sharpness across the frame. A lens where the 10 lp/mm curves stay above 0.8 and the 30 lp/mm curves stay above 0.6 across most of the frame is performing very well. Curves that drop steeply toward the edges indicate significant quality loss in the corners.
Be aware that MTF charts from different manufacturers may not be directly comparable. Some measure at different apertures, use different test standards, or simulate performance computationally rather than measuring actual production lenses. MTF charts are most useful for comparing lenses within the same manufacturer’s lineup.
How Focal Length and Aperture Affect Optical Quality
Every lens has an aperture “sweet spot” where it delivers its best optical performance. This is typically two to three stops smaller than the maximum aperture. A lens with a maximum aperture of f/1.4 usually peaks around f/4 to f/5.6. An f/4 lens might peak around f/8.
At maximum aperture, the lens uses the full diameter of its elements, and aberrations (especially spherical aberration, coma, and lateral chromatic aberration) are at their worst. As you stop down, the aperture blocks the most problematic edge rays, and performance improves dramatically. This improvement continues until diffraction takes over as the dominant limiting factor, typically around f/11 to f/16 on full-frame cameras and f/8 to f/11 on APS-C.
Zoom lenses add another variable: optical quality often varies across the zoom range. Many zoom lenses perform best at moderate focal lengths and show weaker performance at the extremes of their range. A 24-70mm zoom might be sharpest around 35-50mm and softer at 24mm and 70mm. This is a fundamental challenge of zoom lens design, because the elements must balance aberration correction across a range of configurations rather than being optimized for a single focal length.
Prime lenses (fixed focal length) have a significant optical advantage because every element is optimized for exactly one focal length. This allows lens designers to correct aberrations more aggressively with fewer elements. It is one reason why fast primes (f/1.4, f/1.8) can deliver exceptional quality at wide apertures where comparable zoom lenses would struggle.
Image Stabilization Optics
Optical image stabilization (OIS) uses a movable lens element group that shifts to counteract camera shake. Gyroscopic sensors in the lens detect movement, and a microprocessor commands actuators to shift the stabilization group in the opposite direction, keeping the image steady on the sensor.
Modern stabilization systems can compensate for several stops of camera shake, allowing handheld shooting at shutter speeds that would otherwise require a tripod. A lens rated for 5 stops of stabilization means you can shoot handheld at 1/15 second and get results similar to shooting at 1/500 second without stabilization.
The stabilization optics add weight, complexity, and cost to the lens. They can also slightly affect optical quality in some designs, though modern implementations have minimized this trade-off. Many current camera systems use in-body image stabilization (IBIS) instead of or in addition to lens-based stabilization. IBIS moves the sensor rather than a lens element, which means every lens benefits from stabilization. Some systems combine lens and body stabilization for even greater effectiveness.
Common Mistakes
Understanding lens optics helps you avoid common misconceptions that lead to poor purchasing decisions and suboptimal technique.
- Assuming sharpness is the only measure of lens quality. Contrast, color rendering, flare resistance, bokeh quality, distortion, and build quality all matter. A lens that is marginally less sharp but has beautiful rendering and excellent contrast may produce more pleasing images than a technically sharper lens with harsh bokeh and poor flare handling.
- Judging a lens only at its maximum aperture. Every lens improves when stopped down. If you primarily shoot at f/5.6 to f/11, a lens that is mediocre wide open but exceptional stopped down may serve you better than a lens that is good wide open but only marginally better stopped down. Consider the apertures you actually use.
- Ignoring the effect of diffraction at small apertures. Stopping down past f/16 on full-frame (or f/11 on APS-C) causes diffraction softening that reduces overall sharpness. Smaller apertures do not always mean sharper images. Know your camera’s diffraction limit and stay at or above it when sharpness is the priority.
- Expecting zoom lenses to match primes at the same price point. Zoom convenience comes with optical compromises. A zoom lens must correct aberrations across a range of focal lengths, which is inherently more challenging than optimizing for a single focal length. At the same price, a prime lens will almost always deliver superior optical performance.
- Neglecting to use a lens hood. Lens hoods are not just for sun protection. They reduce flare and ghosting caused by off-axis light, which improves contrast and color saturation in virtually every shooting situation, even on overcast days. Always use the hood.
Try This: Practical Lens Optics Exercises
These hands-on exercises help you see optical principles at work with your own equipment.
- Find your lens’s sweet spot. Photograph a detailed, flat subject (a brick wall, a newspaper on a wall, or a commercial lens test chart) at every aperture from wide open to minimum. Compare center and corner sharpness at each aperture. Note where the lens is sharpest and where diffraction begins to soften the image. This tells you the exact optimal aperture for your lens.
- Identify chromatic aberration. Photograph bare tree branches against a bright sky using your lens at its widest aperture. Zoom to 100% on your computer and look along the edges of the branches. Purple or green fringing is chromatic aberration. Now shoot the same scene stopped down to f/8. Compare the fringing. Longitudinal CA will diminish; lateral CA will remain but can be removed in your editing software.
- Test for coma. If you have a fast wide-angle lens, photograph a night sky scene with visible stars. Examine the stars in the corners at 100%. If they appear as tiny wing shapes or streaks rather than dots, that is coma. Stop down one or two stops and reshoot. Notice how the coma diminishes. This is essential knowledge for astrophotography.
- Compare zoom vs. prime rendering. If you own both a zoom and a prime at the same focal length (for example, a 50mm prime and a 24-70mm zoom set to 50mm), photograph the same portrait scene with both at the same aperture. Compare sharpness, contrast, and background rendering (bokeh). You will likely see subtle but real differences in how the two lenses render the scene.
- Test lens distortion. Photograph a building or a grid pattern (tile floor, graph paper) with your widest lens at both the widest and narrowest focal lengths. Look for barrel distortion (lines bowing outward) at wide angles and pincushion distortion (lines bowing inward) at telephoto settings. Then enable lens corrections in your editing software and see how effectively the distortion is removed.
Frequently Asked Questions
How many elements should a good lens have?
There is no ideal number. Simple prime lenses may use 7 elements and produce stunning images, while complex zooms use 20+ elements. More elements allow more aberration correction but also introduce more surfaces where light can be lost or reflected. The design skill lies in achieving the best correction with the fewest elements. Judge a lens by its results, not its element count.
What does “ED glass” mean in a lens name?
ED stands for Extra-low Dispersion. It means the lens contains at least one element made from glass with unusually low dispersion, which reduces chromatic aberration (color fringing). Different manufacturers use different names: ED, LD (Low Dispersion), SLD (Special Low Dispersion), Super ED, or UD (Ultra-low Dispersion). They all indicate the same type of specialized glass designed to improve color correction.
Are aspherical lenses better than spherical lenses?
Aspherical elements correct spherical aberration and distortion more effectively than spherical elements. Lenses containing aspherical elements are generally sharper wide open, more compact, and lighter than equivalent all-spherical designs. However, the overall lens design matters more than any single element type. A well-designed all-spherical lens can outperform a poorly designed lens with aspherical elements.
How do I read an MTF chart?
On an MTF chart, the horizontal axis shows distance from the image center (center left, corner right) and the vertical axis shows contrast (0 to 100%). Higher lines mean better performance. The thick lines (10 lp/mm) represent contrast, and the thin lines (30 lp/mm) represent detail resolution. Lines staying high and flat across the chart indicate even performance from center to corner. Two line types at each frequency (sagittal and meridional) show performance in different orientations. When they are close together, the lens renders detail uniformly.
Why are prime lenses generally sharper than zooms?
Prime lenses are optimized for a single focal length, which means every element can be designed to correct aberrations at that specific configuration. Zoom lenses must correct aberrations across a range of focal lengths, which requires more design compromises. The zoom mechanism itself introduces additional complexity and potential for alignment errors. Premium zoom lenses have closed much of the gap, but at equivalent price and maximum aperture, primes typically deliver superior optical performance.
Do lens coatings wear off?
Modern multi-coatings are extremely durable under normal use. They are applied to internal elements that are protected from contact. The front and rear elements are more vulnerable to cleaning damage. Rubbing the front element with a dry cloth, using harsh chemicals, or cleaning aggressively can scratch or degrade the coating over time. Use a clean microfiber cloth, proper lens cleaning solution, and gentle technique. A lens hood also protects the front element from accidental contact.
What causes lens flare and how do I prevent it?
Lens flare occurs when strong light (typically the sun or a bright artificial source) enters the lens and reflects between internal elements. It appears as bright spots, streaks, or a hazy wash of reduced contrast across the image. Better lens coatings reduce flare. Using a lens hood blocks off-axis light that causes flare. Shielding the front element with your hand or a card can also help. Some photographers embrace flare as a creative element, but when you want to avoid it, a hood and careful framing are your best tools.
